Industrial turbo pressure blowers, high pressure radial ventilators and airfoil centrifugal fans. Sales of OEM industrial process pressure blowers, fans, and high pressure ventilators.
pressure blowers

Industrial Pressure Blowers and High Pressure Pressure Blowers

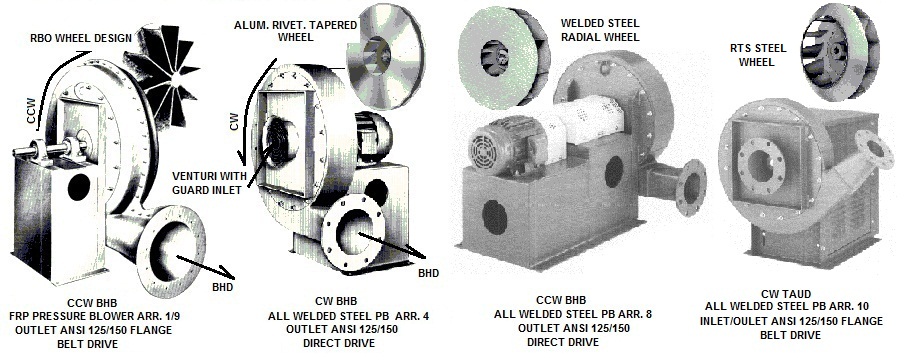

PB, HPPB, CB, E, R, RE : industrial pressure blowers and high pressure radial ventilators supplied in cast aluminum, cast iron, or all-welded construction to prevent flexing at high pressure. Available in direct drive fan arrangements 4/4V/4H/7/8 and belt drive arrangements 1/9/10. Blower capacities: to 10,000 CFM. Single stage pressure blowers develop up to 4 psi static pressure. Two stage pressure blowers and multistage pressure blowers are for higher pressure.

Aluminum blower wheel, Steel wheel, or Alloy wheel: industrial pressure blower and high pressure blower wheels are of riveted, cast, or all welded fan construction. Flat wheel, tapered wheel, and dual tapered blower wheel design. Available with RBO radial self-cleaning fan blades; RTS radial tip blades; BI backward inclined blades, or BC backward curved non-overloading blower blades. Alloy wheels are available in SS 316L, SS 304, SS 204, monel, corten, FRP, and abrasion resistant fan construction. The ventilator pressure curve remains stable from wide open to closed off position without pulsation on all wheel designs.

Inlet flanges, outlet flanges, companion flanges: continuosly welded to match ANSI class 125/150, DIN, ISO, or custom hole pattern.

Shaft seals, low leakage, zero leakage, gas tight, airtight blower construction: shafting is straightened to close tolerance to minimize "run-out" and ensure smooth operation. Ceramic shaft seal and lubricated shaft seals (Buna, Teflon, Viton) are standard. Red silicone gasketing, gas-purgeable, double carbon ring shaft seal, gas-tight, or airtight construction, and zero-leakage construction.

Heat fan construction up to 700 F: includes high temperature paint, shaft cooler, shaft-cooler guard, steel, or alloy wheel.

Fan cladding for sound attenuation and silencers: cladding consists of 2 inches mineral-wool insulation covered with a welded steel jacket. Acoustic cloth jackets. Inlet silencers/outlet silencers supplied with matching flanges, or inlet/outlet venturi with guard, or plain pipe connection.

Blower inlet filter assemblies: cartridge type, with polyester element / wire mesh oil wetted element / high flow synthetic element / paper element. Available with protective hood, or hood-silencer.

Standard accessories:flash / raised access door, inspection port, drain and plug, unitary base, shaft and bearing guard, belt guard, motor cover, spring vibration isolation, rubber-in-share (RIS) vibration isolation, vibrating pads, wafer style / lug style outlet damper and electrical / pneumatic actuators.

Controls and drives: variable frequency drives (VFD), across-the-line starters, RTDs, pressure sensors, flowmeters - complete control packages in NEMA 1, NEMA 3R, NEMA 4 enclosure.
















Custom fans, heat resistant fans, panel fans, suction fans, up-blast and down-blast fans and blowers, vaneaxial,  tubeaxial, tubular acoustafoil fans, wind tunnel fans, blast blowers, direct drive fans and blowers, gas tight fans and blowers, insulation blowers and fans, Northern Blower Sales, Twin City fans
Manufacturer of I.D. blowers, F.D. blowers, force draft fans, force draft blowers, blow off ventilators / fans, PVC FRP SST ventilators, squirrel cage blower fans, high pressure centrifugal ventilators, Chicago blowers, aluminum fans, stainless steel ventilators, hot air blowers, heating fans, high temperature oven ventilators, high pressure air blowers, squirrel cage blower wheels, Peerless Dayton ventilators, Sheldons blowers, New York fans NYB, TCF, Delhi fans blowers.
Canadian Blower industrial blowers, commercial fans, high-temperature industrial blowers, Canadian Blower pressure blowers. Highly Corrosive fans, Highly Corrosive Blowers, Process Blowers, Process Fans, High Pressure Blowers, High Pressure Fans,
        Axial Bladed Blowers, Axial Bladed Fans, Fan Components, Air handlers, Air handling equipment, Air handling units, Air handling systems,
        Airfoil, Backward Curved, Chicago Blower Corporation, CBC, Chicago Blower Fans, Chicago Fans, Chicago Blowers, Industrial Fans, Fans,
        Industrial Blowers, Blowers, Centrifugal Fans, High Capacity Fans, High Capacity Blowers, Axial Fans, Heavy Duty Fans, OEM Fan Components,
        Replacement Parts, Industrial Air Handling Specialists,Airfoil Plenum Fans, Plenum Fans, Plug Fans, Fan Kits, Airfoil/Backward Curved,
        Backward Inclined Fans, Industrial Exhausters, AF Fans, BI Fans, Cast Aluminum Pressure Blowers,Pressure Blowers,Radial Tip Fans,FRP Fans,
        Propeller Fans ,Vane Axial Fans, Damper, FRP, OEM, Prop Fans, Air Kits, AF Wheel, BC Wheel, B Wheel, BI Wheel, OEM Fans, OEM Blowers,
        New York Blower, NYB, Cincinnati Fans,  Cincinnati Blowers, Twin City Fan, Twin City Fan and Blower, Twin City Blower, Robinson Fans,
        Robinson Fans and Blowers, Robinson Blowers, Square Fans, Tunnel Vent, API Fans, PIP Fans, Food Grade Fans, Food Grade Blowers,
        Air Handling Fans, Air Handling Blowers, Ventilation Fans, Ventilation Blowers, Vent Set Fans, Vent Set Blowers, Aerospace Fans,
        Aerospace Blowers, Agriculture Fans, Agriculture Blowers, Air Pollution Control Fans, Air Pollution Control Blowers, Asphalt Fans,
        Asphalt Blowers, Automotive Fans, Automotive Blowers, Car Wash Fans, Car Wash Blowers, Cement Fans, Cement Blowers, Chemical Processing Fans,
        Chemical Processing Blowers, Clean Room Fans, Clean Room Blowers, Coal Fans, Coal Blowers, Dust Collection Fans, Dust Collection Blowers,
        Ethanol Fans, Ethanol Blowers, Fertilization Fans, Fertilization Blowers, Food and Beverage Fans, Food and Beverage Blowers, Foundry Fans,
        Foundry Blowers, Glass Making Fans, Glass Making Blowers, Glass Fans, Glass Blowers, Manufacturing Fans, Manufacturing Blowers, Marine Fans,
        Marine Blowers, Metals and Mineral Fans, Metal and Mineral Blowers, Mining Fans, Mining Blowers, Nuclear Fans, Nuclear Blowers, Paper production
        Fans, Paper production Blowers, Pulp Production Fans, Pulp production blowers, Paper and Pulp Fans, Paper and Pulp Blowers, Petrochemical Fans,
        Petrochemical Blowers, Pharmaceutical Fans, Pharmaceutical Blowers, Printing Fans, Printing Blowers, Power Generation Fans, Power Generation Blowers,
        Recycling Fans, Recycling Blowers, Steel Fans, Steel Blowers, Steel Fabrication Fans, Steel Fabrication Blowers, Textile Fans, Textile Blowers,
        Transportation Fans, Transportation Blowers, Helicopter Fans, Helicopter Blowers, Locomotive Fans, Locomotive Blowers, Farming Equipment Fans,
        Farming Equipment Blowers, Tunnel Ventilation Fans, Tunnel Ventilation Blowers, Water Treatment Fans, Water Treatment Blowers, Aeration Fans,
        Aeration Blowers, Air Slide Fans, Air Slide Blowers, Air Stripper Fans, Air Stripper Blowers, Blow Off Fans, Blow Off Blowers, Boiler Fans,
        Boiler Blowers, Boiler System Fans, Boiler System Blowers, Burner System Fans, Burner System Blowers, Clinker Cooler Fans, Clinker Cooler Blowers,
        Containment Fans, Containment Blowers, Computer System Fans, Computer system blowers, Drying Fans, Drying Blowers, Fluidized Bed Fans, Fluidized Bed Blowers,
        Forced Draft Fans, Forced Draft Blowers, FD Fans, FD Blowers, Fume Exhausts fans, Fume Exhaust Blowers, General Ventilation Fans, General Ventilation Blowers,
        Induced Draft Fans, Induced Draft Blowers, Industrial Oven Fans, Oven Fans, Lab Hood Exhaust Fans, Lab Hood Exhaust Blowers, Material Handling Fans,
        Material Handling Blowers, Odor Control Fans, Odor Control Blowers, Oil Mist Fans Oil Mist Blowers, Oxidizer Fans, Oxidizer Blowers, Thermal Oxidizer Fans,
        Thermal Oxidizer Blowers, Parking Garage Fans, Parking Garage Blower, Exhaust Fans, Exhaust Blowers, Pickling Fans, Pickling Blowers, Pneumatic Conveying Fans,
        Pneumatic Conveying Blowers, Pollution Control Fans, Pollution Control Blowers, Process Cooling Fans, Process Cooling Blowers, Process Heating Fans,
        Process Heating Blowers, Spray Booth Fans, Spray Booth Blowers, Scrubber Fans, Scrubber Blowers, Snow making Fans, Snow Making Blowers, Tempering Fans,
        Tempering Blowers, Vacuum System Fans, Vacuum System Blowers, Wave Pool Fans, Wave Pool Blowers, Wind Tunnel Fans Wind Tunnel Blowers
