Buffalo Tubeaxial Fan (industrial tubeaxial blower fan)

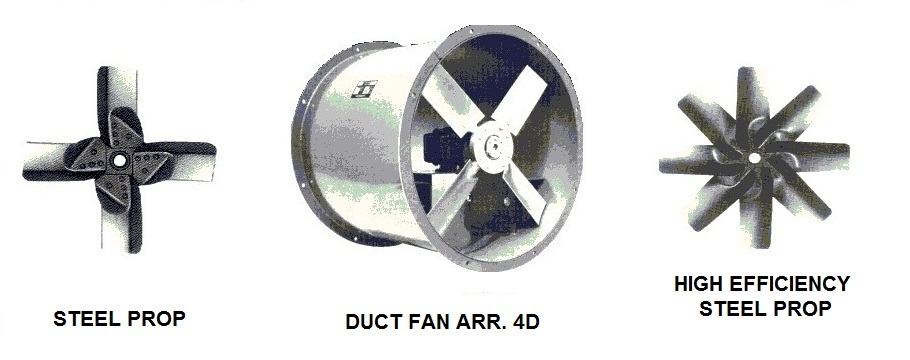

Tubeaxial fan: axial flow fan designed for low pressure building ventilation and industrial process application. Uses include heat, smoke, and fume removal; process ventilation and process air handling; proces drying with ambient or preheated up to 650 F air; comfort process cooling and general ventilation of buildngs. Available in direct drive fan arrangements 4/4M/4V/4D/4R and corresponding belt drive arrangements 9/9M/9V/9D/9R. Fan capacities: to 350,000 CFM. Static pressure to 4 inches water gauge.

Aluminum wheel, Steel wheel, or Alloy wheel: tubeaxial fans for non-sparking x-proof applications is supplied in AMCA A, AMCA B, or AMCA C spark resistant fan construction in all aluminum welded construction, or in monel. For corrosive environment tubeaxial fan is supplied in 304 SS, 316 SS, or 316 L stainless steel construction. For chemical process applications tubeaxial fan is available in fiber reinforced plastic (FRP) construction, or in polypropylene construction, or in plastic. For high temperature applications up to 650 F tubeaxial fan is supplied typically in steel welded construction.

Inlet flanges, outlet flanges, companion flanges: continuosly welded to match ANSI class 125/150, DIN, ISO, or custom hole pattern.

Shaft seals: tubeaxial fan shafting is straightened to close tolerance to minimize "run-out" and ensure smooth operation. Bearings are of pillow plock, or flaged bearings. Ceramic shaft seal and lubricated shaft seals (Buna, Teflon, Viton) are standard. Red silicone gasketing is used on high temperature applications.

Heat fan construction up to 850 F: includes high temperature paint, shaft cooler, shaft and bearing tunel cooling auxiliary blower (optional), insulated shaft and bearing tunel, steel, or alloy fan wheel.

Cladding for sound attenuation and silencers: blower cladding consists of 2 inches mineral-wool insulation covered with a welded steel jacket. Acoustic cloth jackets are available as inexpensive alternative. Inlet silencers / outlet silencers are supplied with matching flanges.

Inlet vane damper assembly: external inlet vane fan damper is provided for precise air volume control.

Standard accessories: flash / raised access door, inspection port, drain and plug, 3-way drain, mount feet, belt guard, motor cover, spring vibration isolation, rubber-in-share (RIS) vibration isolation, vibrating pads, electrical actuators, pneumatic actuators.

Roof mount accessories: roof curb mount cap, roof curb, weather band, fan weather shroud with integral flap damper, butterfly damper assembly, magnetic latches.

Easy Access Construction: for wash-down duty applications: tube casing is of split open hinged construction and allows for direct access to the wheel-shaft-bearings and drive.

















Backward curved fan blowers in New York City and Chicago, aerofoil / acoustafoil, or aerocline fan blowers with high temperature construction, stainless steel SS316, SS316L, SS304, aluminum, explosion proof - spark resistant construction, monel construction. Supply of replacement backward curved (BC) fan blowers and airfoil (AF), or acoustafoil (AcF), or Aerocline fan blower parts for backward curved bc fan blowers manufactured by Buffalo Blower - New York, Twin City Fan, Northern Blower, Chicago Blower, Sheldons, Cincinnati Fan, Hartzell, IAP, Industrial air products, Canadian blower, Aerovent, Penn Ventilation, Penn-Barry, Barry Blower, ACME, Aerovent, Alphair, American Fan, Lau Industries, Clarage, Delhi, Canarm, Leader Fan, Daltec, ABB, Flakt, Flaktwoods, Woods, MK Plastics, Robinson Industrial, Garden City Fan, Loren Cook, Jen-air, Jenn Fan, Aeroflo, Grainger, Greenheck, Kice Fan, ILG Industries, Canada Fan, Industrial Air, Ceilcote.

Backwardly inclined (BI) fan blowers and aerofoil (AF), acoustafoil (AcF), or aerocline fan blowers from New York; with high temperature construction, low leakage, 87 % efficiency, stainless steel SS316, SS316L, SS304, aluminum construction, spark resistant construction, monel construction. Supply of replacement bacward inclined (BI) fan blowers and airfoil (AF), or acoustafoil (AcF), or Aerocline fan blower parts for backward inclined bi fan blowers manufactured by Buffalo Blower / New York Blower, Twin City Fan, Northern Blower, Chicago Blower, Sheldons, Cincinnati Fan, Hartzell, IAP, Industrial air products, Canadian blower, Howden Buffalo, Penn Ventilation, Penn-Barry, Barry Blower, ACME, Aerovent, Alphair, American Fan, Lau Industries, Clarage, Delhi, Canarm, Leader Fan, Daltec, ABB, Flakt, Flaktwoods, Woods, MK Plastics, Robinson Industrial, Garden City Fan, Loren Cook, Jen-air, Jenn Fan, Aeroflo, Grainger, Greenheck, Kice Fan, ILG Industries, Canada Fan, Industrial Air, Ceilcote, Breidert; high pressure and high temperature pressure blowers.
