Industrial backward curved (BC) fan blower

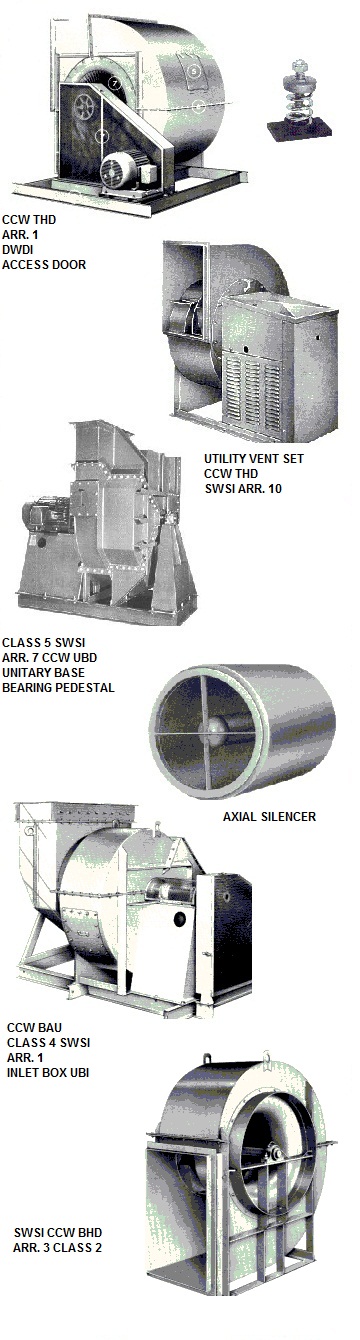

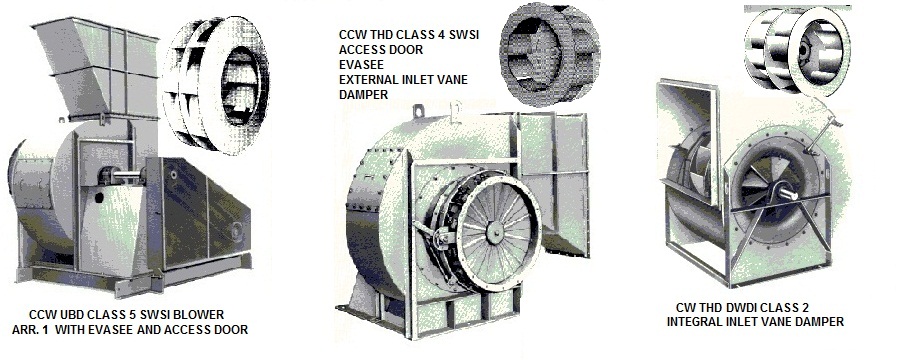

SWSI, DWDI, AcF, PLR, BI, BC, AF, ST, Backward Inclined Fans, Aerocline, General Purpose, GP, BL, Limit Load, LL, Buffalo Vent Set, BCV, BCA, BCM, BCS fans: industrial backward curved blowers are supplied in welded heavy gauge steel construction to prevent flexing at high pressure. Available in direct drive arrangements 4/4V/4H/7/8 and belt drive arrangements 1/3/9/10. Arr. 10 fan blowers are known as ventilating sets (vent sets). Available in single width single inlet (SWSI), or double width double inlet (DWDI). Capacities: to 500,000 CFM. Static pressure up to 100 inches water gauge depending on the class of construction. Typical class of construction is Class 1, 2, 3, 4, 5.

Backward-inclined fans offer lower sound levels and energy costs in clean air applications; fan impeller designed for high operating efficiency and high mechanical strength in its specific blade angles.

Centrifugal plug fan is used in ovens and dryers to circulate clean air and eliminate cold spots; also good in dust collector applications.

Aluminum wheel, Steel wheel, or Alloy wheel: industrial backward curved (bc) blowers and fans are supplied with aluminum fan wheel or corten wheel to meet requirements of AMCA A, and AMCA B spark resistant construction. Mild steelblower  wheels are of all welded construction. If higher pressure is required wheel can be furnished of high strenght steel. Stainless steel ventilator wheel in 304 SS, 316 SS, 316 SS, 2205 SS are supplied for corrosive applications, or high temeparature applications. The fan pressure curve remains stable at the top are of the fan curve and to the right of the pick point.

Inlet flanges, outlet flanges, companion flanges: continuosly welded to match ANSI class 125/150, DIN, ISO, or custom hole pattern.

Shaft seal and low leakage construction: shafting is straightened to close tolerance to minimize "run-out" and ensure smooth operation. Teflon shaft seal, ceramic shaft seal and lubricated shaft seals (Buna, Teflon, Viton) are standard. Red silicone gasketing is provided for low leakage construction and for high temperature construction. Heavy-duty spherical roller bearings are standard.

Heat fan construction up to 800 F: includes high temperature paint, shaft cooler, shaft-cooler guard, and steel wheel, or alloy wheel.

Cladding for sound attenuation and silencers: cladding consists of 2 inches mineral-wool insulation covered with a welded steel jacket. As an inexpensive alternative is offered slide-on acoustic cloth jackets. Inlet silencer/outlet silencer are supplied with matching flanges for further attenuation of the noise level.

Inlet filter assemblies: cell type, 1 inch, or 2 inch filters are available with filter cabinet to be mounted at fan inlet. Bird guard, insect screen and weather hood are optional accessories with inlet filter package.

Standard accessories:flash / raised access door, inspection port, drain and plug, unitary base, shaft and bearing guard, belt guard, motor cover, spring vibration isolation, rubber-in-share (RIS) vibration isolation, vibrating pads, outlet damper, inlet vane damper, external inlet vane damper, evase, electrical / pneumatic actuators.
